Description

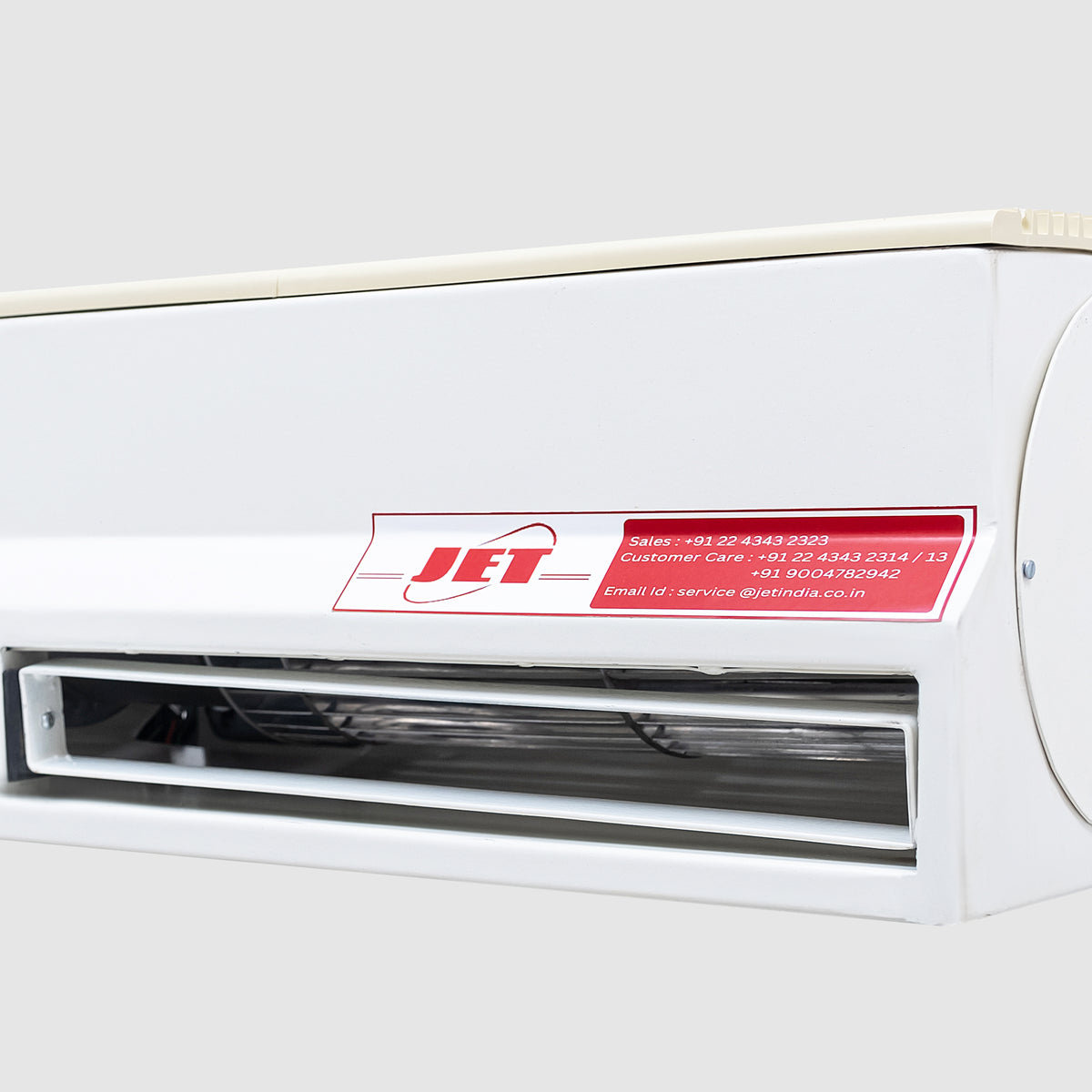

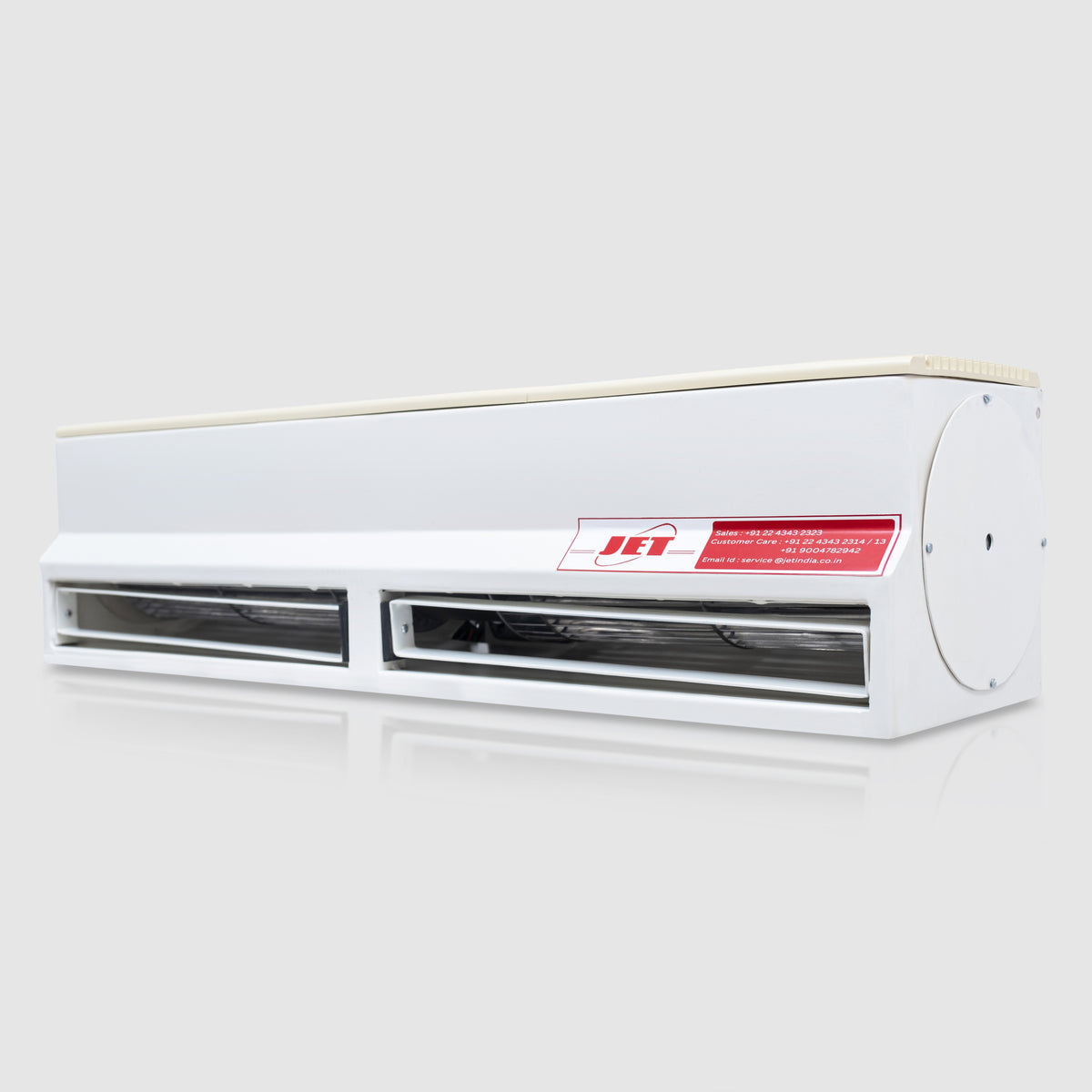

The JET EOHV is the high-velocity model in the JET air curtain range. It throws a 12–14 m/s stream of air across the doorway, forming a uniform, noiseless and invisible barrier that keeps conditioned air in and heat, dust, insects, smoke and odour out — while men and material keep moving through the opening.
EOHV is specified for pharmaceutical units, food processing, cleanrooms, textile plants, supermarkets, cold store anterooms and general industry, on door heights up to 9 ft. This is the mild steel version: 16, 18 or 20 gauge MS/GI casing, powder coated for corrosion resistance.
Why the EOHV holds the door
- Motor — 1440 RPM continuous-rating motor with Class B insulation and moisture-resistant coating, on ball bearings. Not a repurposed air-conditioning motor.
- Blower — one-piece blower with a 7" statically and dynamically balanced forward-curved impeller, for high velocity at low sound levels and low power draw.
- Body — thicker gauge fabricated casing for zero vibration and turbulence.
- Suction grills — high-impact plastic, designed for maximum air suction, not wood or metal castings.
- Alignment — shaft alignment is held for the life of the machine, so the unit does not start vibrating a year in.
- Finish — polyurethane or powder-coated surface for long life and corrosion resistance.
What it saves you
- Cuts air-conditioning consumption at the doorway by up to 30%.
- Stops the entry of insects, heat, dust, fumes and odour.
- Lets men and material move freely — no strip curtain to push through.
- Runs at high efficiency on low power.
Sizing and installation
Available in 3 ft, 1 m, 4 ft, 5 ft and 6 ft. For openings wider than 6 ft, place units side by side to form one continuous curtain. Tailor-made and odd sizes are made to order.
The curtain should cover the full doorway with about 100 mm overlap on each side, and is mounted as close as possible to the top edge of the door, on the inside of the premises. It hangs on the installation bracket supplied as standard; ceiling-mounted versions are available. Keep a minimum 50 mm between the unit and the ceiling, and 200 mm clear of any obstruction.
| Model | EOHV (High Velocity) |
|---|---|
| Air velocity | 12–14 m/s |
| Air velocity (FPM) | 2750 FPM |
| Rated power | 0.25 / 0.37 kW |
| Motor | 1440 RPM, single or three phase, Class B insulation, continuous rating, ball bearings |
| Impeller | 7" dia, forward curved, statically and dynamically balanced |
| Dimensions | Length × 300 × 270 mm |
| Weight | 38–52 kg per unit |
| Door height | Up to 9 ft |
| Body | MS / GI, 16 / 18 / 20 gauge, powder coated |
| Sizes | 3 ft · 1 m · 4 ft · 5 ft · 6 ft (combine units for wider openings) |
| Power supply | 220 V single phase or 440 V three phase |
| Mounting | Wall mount on standard bracket; ceiling mount available |
| Made by | JET INDIA, Mahim (W), Mumbai |
Applications
Pharmaceutical units · Food processing · Cleanrooms · Supermarkets · Cold storages · Textile industries · Hotels and restaurants · Hospitals and laboratories · Computer rooms · Showrooms · Warehouses and loading bays
